Brief Introduction of FPC
Flexible Printed Circuit Board (FPC) is referred to as "soft
board". In the industry, FPC is a printed circuit board made of
flexible insulating substrate (mainly polyimide or polyester film),
which has many advantages that rigid printed circuit boards do not
have. For example, it can be freely bent, wound, folded. The volume
of electronic products can be greatly reduced by using FPC, which
is suitable for the development of electronic products in the
direction of high density, miniaturization and high reliability.
Therefore, FPC has been widely used in aerospace, military, mobile
communication, laptop, computer peripherals, PDA, digital camera
and other fields or products.
FPC also has the advantages of good heat dissipation,
solderability, easy mounting and low cost.
Flexible printed circuit board has one layer, two layers and
multilayer board. The base material is polyimide clad laminate.
This kind of material has high heat resistance and good dimensional
stability. It is the final product through pressing with the
coating film which has both mechanical protection and good
electrical insulation. The surface and inner conductors of
double-sided and multi-layer printed circuit boards are metallized
to realize the electrical connection of inner and outer layers.
The function of flexible circuit board can be divided into four
kinds, namely, lead line, printed circuit, connector and
multifunction integrated system, which cover computer, computer
peripheral auxiliary system, consumer household electrical
appliance and automobile, etc.

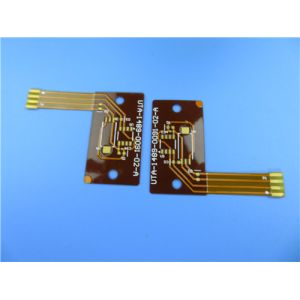

FPC Case: Single Sided Flexible Printed Circuit (FPC) Built On
Polyimide With Immersion Gold
(FPC’s are custom-made products, the picture and parameters shown
are just for reference)
General description
This is a type of flexible printed circuit for the application of
Bluetooth Headset. It’s a single sided layer FPC at 0.15mm thick.
The base laminate is from Shengyi. It’s fabricated per IPC 6012
Class 2 using supplied Gerber data. Polyimide stiffener is applied
on the inserting part.
Parameter and data sheet
| PCB SIZE | 45 x 33mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | no |
| LAYER STACKUP | copper ------- 35um(1oz) |
| Polyimide 0.1mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12mil/12mil |
| Minimum / Maximum Holes: | 2.5mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 2 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | Polyimide 0.1mm, FPC |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.1mm ±0.05 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ"
nickel) |
| Solder Mask Apply To: | TOP |
| Solder Mask Color: | Yellow, Coverlay |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Laser cut |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | None Plated Through Hole(NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Features and benefits
Excellent flexibility
Reducing the volume
Weight reduction
Consistency of assembly
Increased reliability
Controllability of electrical parameter design
The end can be whole soldered
Material optionality
Low cost
Continuity of processing
No minimum order quantity and low cost sample.
More than 15 years of experience
Application
Thin-film switch, Mobile phone battery flex board, medical keypad
soft board
