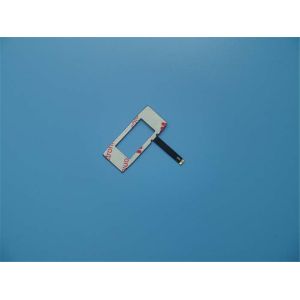

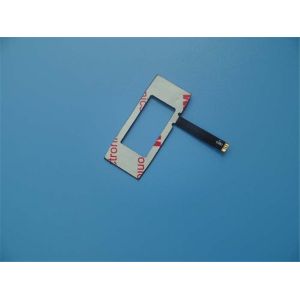

2 layer FPC at 0.2mm thick with Immersion Gold Double access flexible PCBs FPC Polyimide PCBs Manufacturer with White silkscreen

Product profile

1.1 General description

This is a type of flexible printed circuit for the application of keypad antenna. It’s

a 2 layer FPC at 0.2mm thick. The base laminate is from ITEQ, It’s fabricated per

IPC 6012 Class 2 using supplied Gerber data.

1.2 Features and benifits

A. Excellent flexibility
B. Reducing the volume
C. Weight reduction
D. Consistency of assembly
E. Increased reliability
F. Controllability of electrical parameter design
G. The end can be whole soldered
H. Material optionality
I. Low cost
J. Continuity of processing
K. Quick and on-time delivery
L. Delivery on time: >98%

1.3 Application

General purpose LED soft light strip,
Mobile phone module flex board,
Industrial control interphone

1.4 Parameter and data sheet

Size of Flexible PCB	35.72 X 41.41mm
Number of Layers	2
Board Type	Flexible PCB
Board Thickness	0.20mm
Board Material	PET 25µm
Board Material Supplier	ITEQ
Tg Value of Board Material	60℃

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 µm

Coverlay Colour	Black
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	NO
Stiffener Thickness	N/A

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	1

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90℃ No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25℃±125℃, 1000 cycles.
Thermal Stress	Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2
