Product profile

1.1 General description

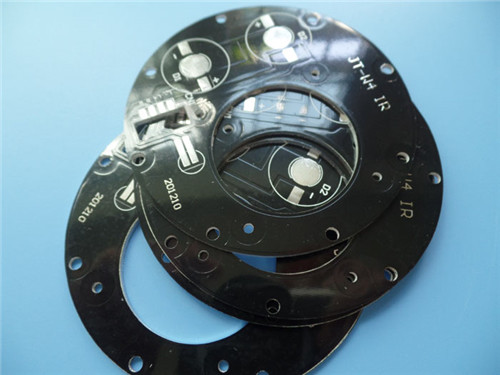

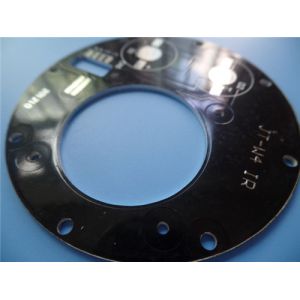

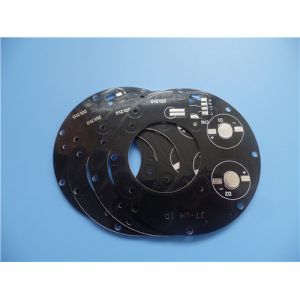

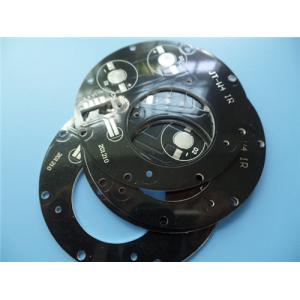

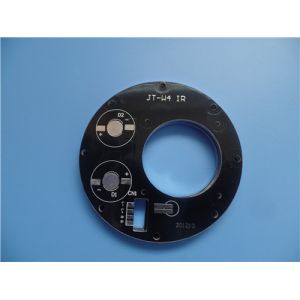

This is a type of aluminum PCB for the application of power module. It's a single layer

MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012

Class 2 using supplied Gerber data. 30 boards are packed separately.

1.2 Features and benifits

A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. Strict WIP inspection and monitoring as well as working instruction,
H. High voltage test, Impedance control test, micro-section, solder-ability test,
I. Eligible products rate of first production: >95%
J. UL recognized and RoHS Directive-compliant
K. High technology
L. Customer complaint rate: <1%

1.3 Application

Fluorescent lamp, CPU board, Floppy disk driver, Communication electronic equipment,

Power supply equipment
