Product profile

1.1 General description

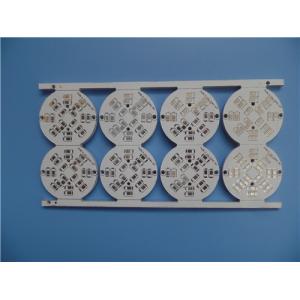

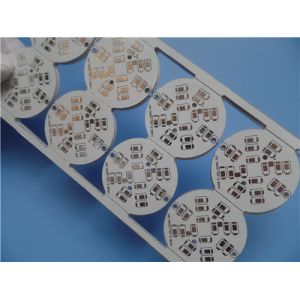

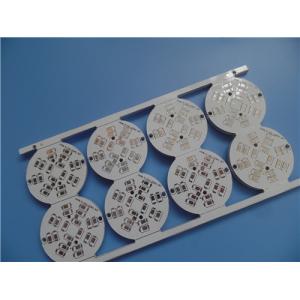

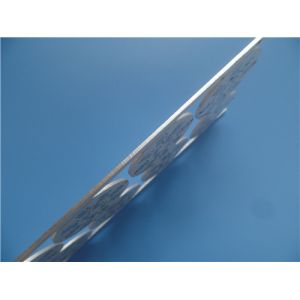

This is a type of aluminum PCB for the application of Led Lighting. It's a single layer

MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class

2 using supplied Gerber data. 20 panels are packed for shipment.

1.2 Features and benifits

A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. Right manufacturing instruction (MI),
H. Whole fabrication process are totally controlled.
I. DDU Door to door shipment with competitive shipping cost,
J. Diversified shipping method
K. Competitive price
L. Professional and experienced engineers

1.3 Application

Module aluminum PCB, Power module, Office automation equipment,Outdoor lighting

1.4 Parameter and data sheet

Film Exposure machine

Bicheng PCB is headquartered in Shenzhen, a city with great economic vitality. Based in China, we adhere to the philosophy of servicing small and medium sized companies offering variety of circuit boards to meet the demands of market.

We maintain the highest standards which support products that exhibit exceptional quality, performance and reliability. The circuit board ranges from conventional FR-4 to PTFE, metal core to flexible circuits which are used in the industries of home appliances, portable and consumable electronics, medical filed, aerospace as well as telecommunications etc.
