Product profile

1.1 General description

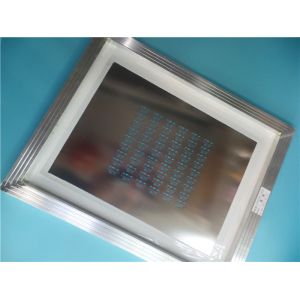

This is a type of laser cut SMT stencil built on 0.12mm stainless steel foil with

aluminum frame 520 mm x 420 mm x 20mm dimension. It’s fabricated per IPC

7525A using supplied Gerber data, squeegee area locating in the center. Fiducal

marks are through holes to suit for the SMT machine. It’s packed with KK carton

(hard card) and usually 2 stencils are packed for shipment.

1.2 Features and benifits

A. The data file is used directly to produce and reduce the error rate;
B. The opening position accuracy of SMT template is very high: the whole process

error is ≤ ±4 μ m;
C. The opening of SMT template has geometric figure, which is advantageous to

the printing and forming of tin paste;
D. Quick CADCAM checking and free PCB quotation;
E. Money-saving, Worry-saving and Labor-saving;
F. Small quantity order is accepted;
G. More than 15 years of experience;

1.3 Application

SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.

1.4 Parameter and data sheet

1.5 Opening Hole Design for Stencil
