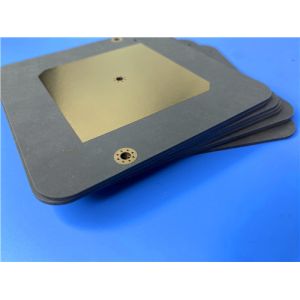

Double-Sided Copper Clad Laminate with Rogers RT/duroid 6006

The double-sided copper clad laminate constructed with Rogers RT/duroid 6006 is optimized for microwave, RF, and high-frequency circuit applications. With its high dielectric constant (Dk = 6.15 ± 0.15) and ultra-low dissipation factor (Df = 0.0027), this laminate is ideal for compact designs and low-loss performance in demanding environments. The 0.35mm finished thickness and 10mil RT/duroid 6006 substrate make this material suitable for X-band and below frequency applications where precision and repeatability are critical.

Key Construction Details

Introduction to Rogers RT/duroid 6006

Rogers RT/duroid 6006 laminates are ceramic-PTFE composites designed for microwave and high-frequency circuit applications. Their high dielectric constant (Dk) enables circuit size reduction, while their tight Dk control ensures repeatable performance. The low dissipation factor makes them suitable for X-band frequencies and below, ensuring minimal signal loss in high-frequency designs.

Why Choose Rogers RT/duroid 6006?

• High Dielectric Constant: Dk = 6.15 ± 0.15 at 10GHz, enabling compact designs and higher component density.
• Low Loss Performance: With a dissipation factor of 0.0027, the material supports efficient signal transmission and low insertion loss.
• Environmental Stability: The laminate features low moisture absorption (0.05%) and high thermal decomposition temperature (Td > 500°C), ensuring reliability in harsh conditions.
• Ease of Processing: Compatible with standard fabrication techniques, including plating and etching.

Key Features of Rogers RT/duroid 6006 Copper Clad Laminate

1. Dielectric Constant (Dk): 6.15 ± 0.15 at 10GHz, offering consistent electrical properties for high-frequency performance.
2. Low Dissipation Factor (Df): 0.0027 at 10GHz, ensuring minimal signal loss and high efficiency in RF circuits
3. Thermal Stability: High decomposition temperature (Td > 500°C) ensures durability in high-power designs.
4. Low Moisture Absorption: 0.05%, making it ideal for high-humidity environments without compromising performance.
5. Tight Control of Thickness and Dk: Ensures repeatable circuit performance, critical for high-frequency and aerospace applications.
6. Lead-Free Process Compatibility: Fully compatible with modern environmentally friendly manufacturing standards.
7. Flammability Rating: UL 94-V0, ensuring safety and reliability in various applications.
8. Dimensional Stability: With a CTE of 47 ppm/°C (X-axis) and 34 ppm/°C (Y-axis), the laminate provides mechanical stability during thermal cycling.

Some Typical Applications:
- Patch Antennas
- Satellite Communications Systems
- Power Amplifiers
- Aircraft Collision Avoidance Systems
- Ground Radar Warning Systems

Conclusion

The double-sided copper clad laminate with Rogers RT/duroid 6006 is a high-performance material optimized for microwave, RF, and high-frequency applications. With its high dielectric constant, low dissipation factor, and excellent environmental resistance, it is ideal for compact, high-frequency designs in aerospace, satellite communications, and radar systems. While its higher cost may limit its use in general-purpose designs, its superior performance ensures reliable operation for advanced electronic systems.
